Vacuum Valves

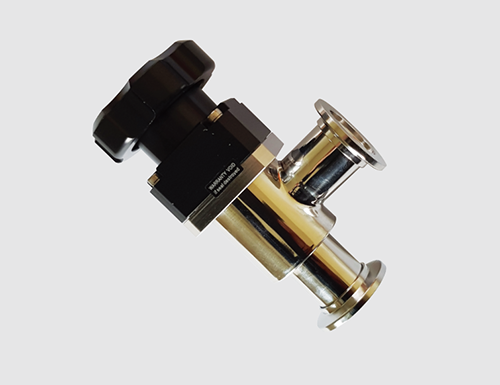

Right Angle Valve (Vacuum On/Off valve)
- Operation type: Pneumatic / Manual
- Shaft Seal Type: Bellows / O-ring Seal
- Flange Type: CF / JIS / ASA / ISO (KF)
- Flange Size: 50mm~550mm
- O-ring Type: 기본 Viton O-ring
- Leak Late: <1.0 x 10-9 sdt cc / sec
- Require Air pressure: 2.5kg / cm2~6kg / cm2
- Operation Temperature: 5°C ~ 70°C
- Position Sensor: 24Vdc / Max. 50mA

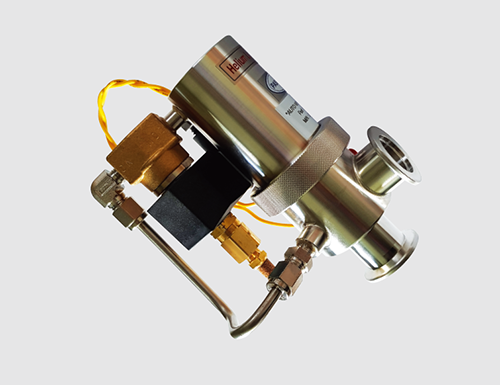

Auto Vent Valve
- Flange Size: NW25, NW40, NW50
- Conductance (l/s): 15, 45, 85
- Leak Rate (torr x l/s) Max. 1.0 x 10-9
- Body Material: SUS304
- Sealing Material: Viton
- Life cycle: 10,000 (Room temperature)

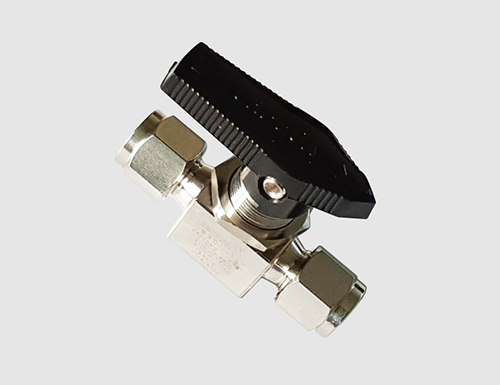

Instrumentation Ball Valve
- MWP: 300psig / 206bar
- MWT: 65°C / 150°F
- Size: Lok 1/8”~3/4” OD & 3~20mm OD, Pipe Thread 1/8”~1/2”
- 316SS, Brass
